Product Description

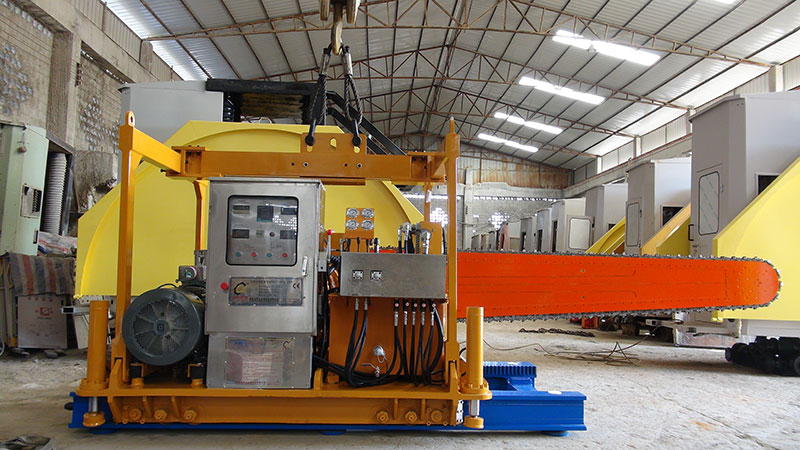

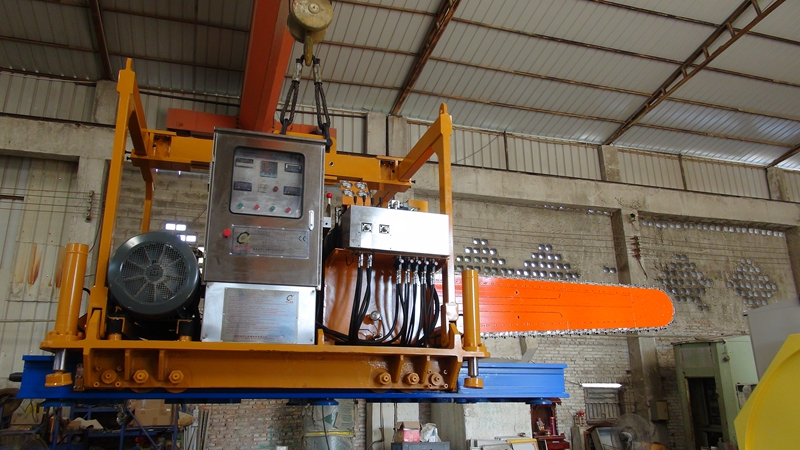

The marble chain arm machine is suitable for marble ore bodies of different materials and can be used for multiple purposes in one machine. The main power of this product is divided into 53kw and 65kw. chain saw machine for marble has a variety of product features, please follow me to continue reading.
Product feature
1. marble chain arm saw can perform dry cutting without water cooling, reducing noise and dust pollution；
2. The marble chain arm saw can be suitable for marble ore bodies of different materials and can be used in one machine;
3. Intelligent setting, without much preparation, high production efficiency, simple and effective operation to reduce labor;
4. The orbital chain arm saw is directly placed on the surface of the mining body. The machine is equipped with 3 orbits as standard. The tracks are used alternately. The machine can cut vertically or horizontally;
5. The whole machine adopts imported components with stable and reliable performance.
Technology parameters
Model | QL-G3200 | QL-G3500 | QL-G4000 | QL-G5000 | QL-G7500 |
Total Power （kw） | 53kw | 53kw | 53kw | 65kw | 65kw |
Chain speed(m/s) | 0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 |
Walking speed（m/s） | 0-15 | 0-15c | 0-15 | 0-15 | 0-15 |
Maximum cutting depth（m） | 3.2 | 3.5 | 4.0 | 5.0 | 7.5 |
Cutting edge width（mm） | 40-42 | 40-42 | 40-42 | 40-42 | 40-42 |
Turning angle（°） | 360° | 360° | 360° | 360° | 360° |
Hydraulic tank capacity（L） | 300L | 300L | 300L | 300L | 300L |
Lubricating oil tank capacity（kg） | 30kg | 30kg | 30kg | 40kg | 40kg |
Length of each rail（m） | 3m | 3m | 3m | 3m | 3m |
Machine weight（including 1 section of rail（kg）） | 7300 | 7500 | 7600 | 8200 | 8500 |
Outline dimension | 3200*2100*2000 | 3200*2100*2000 | 3200*2100*2500 | 4000*2100*2000 | 4000*2100*3000 |
Our features
1.Our company is one of the major factories of diamond tool and cemented carbide in China,for our advantages of technology, advanced production technology, excellent manufacture processing and strict inspection.
2.Our products' quality is advanced at home and abroad. We gain a high reputation from our professional technical team and good market service system. Moreover, we are continuing to strengthen technical innovation to adapt the development of stone industrial structure, so that we can provide the best product to meet all needs of customers.
3.Based on our management idea credit first, user first,quality first as well as our efforts on innovation, we gain recognition from customers. We warmly welcome you to contact with us for any business communication. Hope we can have a sincere cooperation and create a good future.
FAQ
1.Where is your factory located?
In Yonghe Town, Jinjiang City, Quanzhou City, China.
2.When did your factory established?
Since 1995.
3.What type of your product?
We are one of the most professional and biggest manufacturer of diamond wire saw, diamond wire saw machine in China. Our main product is diamond wire saw, down the hole drilling machine, horizontal core drill and so on.
4.Where is your product use in?
Our products are mainly used for mining, processing and cutting all kinds of granite or marble stone.
