Product Description

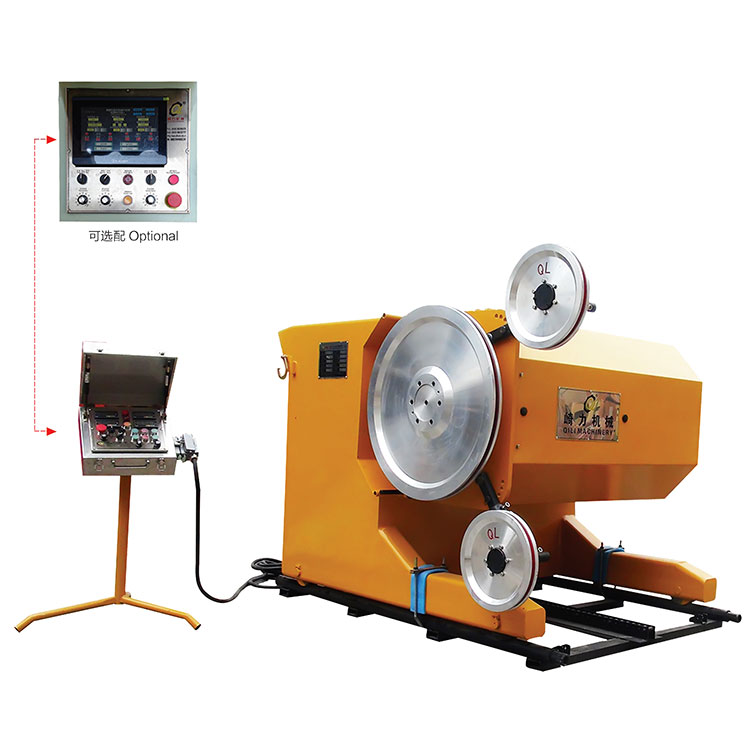

The wire saw is an indispensable machine in mining. This diamond wire saw machine is a highly equipped model with a touch screen control system, which can be used for mining. The machine has four models, of which the main motor power is divided into four types: 37, 45, 55 and 75. The following are our product advantages. Please follow me to continue reading.
Product Feature
High-configuration equipment adopts touch screen to control the system, which can realize the application of wireless control and remote monitor.
To maintain the saw machine at the optimum condition, we adopt double frequency converter with PLC Factory Automation control and apply constant tension control principle. The saw machine can automatically adjust the speed according to the load and size.
There is no requirement for power phase while the machine Is installed. It is unnecessary to identify or adjust the phase.
Control it automatically, vary with the load, and adjust the speed scientifically. All in all, the machine at the optimum condition with those improvement.
Adopted motor drive and installed optoelectronic switch so that the fly can work under the bad condition well.
Technology parameters
Model | QL37-6/8P | QL45- 6/8P | QL55- 6/8P | QL75 -6/8P |
Power of main motor（kw） | 37 | 45 | 55 | 75 |
Flywheel's diameter (mm) | Marble φ800；Granite φ600 | Marble φ900；Granite φ 800 | ||
Guide pulley’s diameter（mm） | 2× φ380 | |||
Wire speed（m/s） | 0-40 | |||
Power of walking motor（kw） | 0.75 | |||
Walking speed（m/h） | 0-30 | |||
Adjustment distance（mm） | 450 | 500 | ||
Cutting distance | 1750 | 2030 | ||
Rotation angle（°） | 360（electric） | |||
Dimensions LxWxH（mm） | 2113*1361*1410 | 2336*1535*1670 | ||
Max. wire saw length（m） | 60 | 80 | 100 | 120 |
Weight（t） | ≈2 | ≈2.1 | ≈3 | ≈3.2 |
Why choose us
Our company is one of the major factories of diamond tool and cemented carbide in China,for our advantages of technology, advanced production technology, excellent manufacture processing and strict inspection. Our products include mining machines and diamond tools, such as: diamond wire saw machine,diamond wire saw, cement carbide tool, and so on. Our products' quality is advanced at home and abroad. We gain a high reputation from our professional technical team and good market service system.
We warmly welcome you to contact with us for any business communication. Hope we can have a sincere cooperation and create a good future.
FAQ
1. Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, we own our factory and we have build up our company since 1995.
2. Q:Where is your factory located?
A:Our factory address is : No. 4, Xiaqiankeng, Xikeng Village, Yonghe Town, Jinjiang City, Quanzhou City, Fujian Province, China.
3. Q:How can i get to your factory?
A:Our factory is near Jinjiang Airport, we can pick you up in the airport.
