Product Description

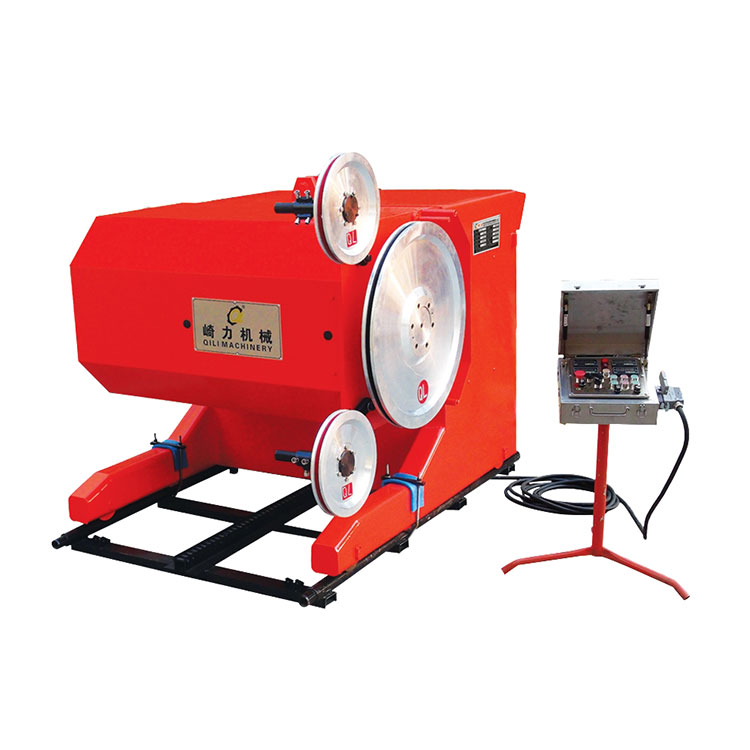

The permanent magnet wire saw is an indispensable machine in mining. This machine is driven by a permanent magnet synchronous motor. The machine can control it automatically, and adjust the speed scientifically. The following are our product advantages. Please follow me to continue reading.
Product Feature
●This machine is driven by a permanent magnet synchronous motor, which can greatly improve the cutting efficiency and save energy consumption.

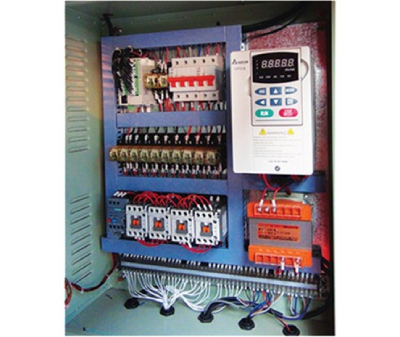

●To maintain the saw machine at the optimum condition, we adopt double frequency converter with PLC Factory Automation control and apply constant tension control principle. The saw machine can automatically adjust the speed according to the load and size.
●There is no requirement for power phase while the machine is installed. It is unnecessary to identify or adjust the phase.
●Control it automatically, vary with the load, and adjust the speed scientifically. All in all, the machine at the optimum condition with those improvement.
●Adopted motor drive and installed optoelectronic switch so that the fly can work under the bad condition well.
Technology Parameters
Model | QL37 | QL45 | QL55 | QL75 |
Power of main motor（kw） | 37 | 45 | 55 | 75 |
Flywheel's diameter (mm) | Marble Φ800；granite Φ600 | marbleΦ900；graniteΦ800 | ||
Guide pulley’s diameter（mm） | 2×Φ380 | |||
Wire speed（m/s） | 0-40 | |||
Power of walking motor（kw） | 0.75 | |||
Walking speed（m/h） | 0-30 | |||
Adjustment distance（mm） | 450 | 500 | ||
Cutting distance | 1750 | 2030 | ||
Rotation angle（°） | 360（electric） | |||
Dimensions LxWxH（mm） | 2113*1361*1410 | 2336*1535*1670 | ||
Max. wire saw length（m） | 60 | 80 | 100 | 120 |
Weight（t） | ≈2 | ≈2.1 | ≈3 | ≈3.2 |
Quality Assurance
Strict contract auditing involved all departments to assure the feasibility of each order.
Process design and validation before production.
Strictly control on all raw and auxiliary materials, All raw materials reach the world advanced level.
On-site inspection to all processes, inspection record keep traceable for 3 years.
All inspectors are skilled with certificates.
100% inspection of finished before shipment.
Advanced and complete testing and inspection equipment.
FAQ
1. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?
A:It’s always my pleasure, hotel booking service is available.
2. Q:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
3. Q:As the shipping period will take long time, how can you make sure the machine won’t be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
