Product Description

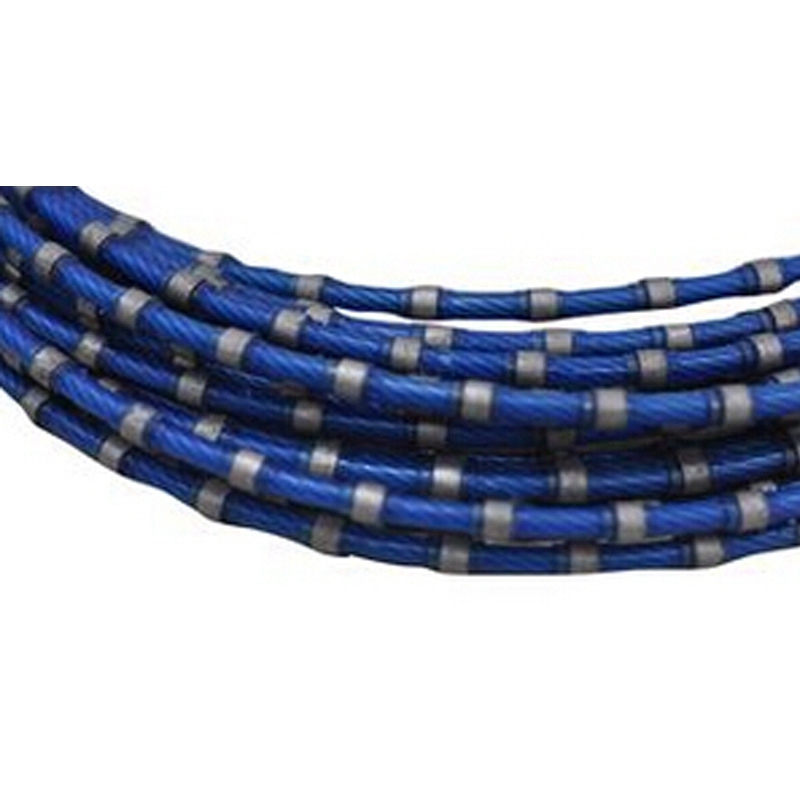

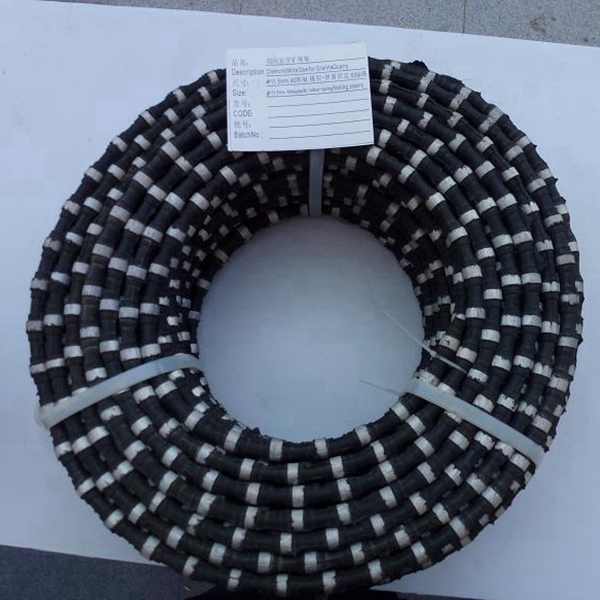

This product is mainly a diamond wire saw for cutting reinforced concrete. The cutting objects of this product: concrete, reinforced concrete, steel structure and steel. This machine can be used to demolish buildings, such as housing, bridges, etc. In addition, it also applies to steel cutting, like cutting underwater steel pipe, wire rope or shipwrecks.
Technology parameter of wire saw
Identification | Specification (mm) | Beads /meter | Fixed | Cutting material | Line speed(m/s) | Cutting speed(㎡/h) | Life length (㎡/m) |
QLRS40 | Φ 11.5 | 40 | Rubber+Spring | Steels | 18-20 | 1-3 | 1-4 |

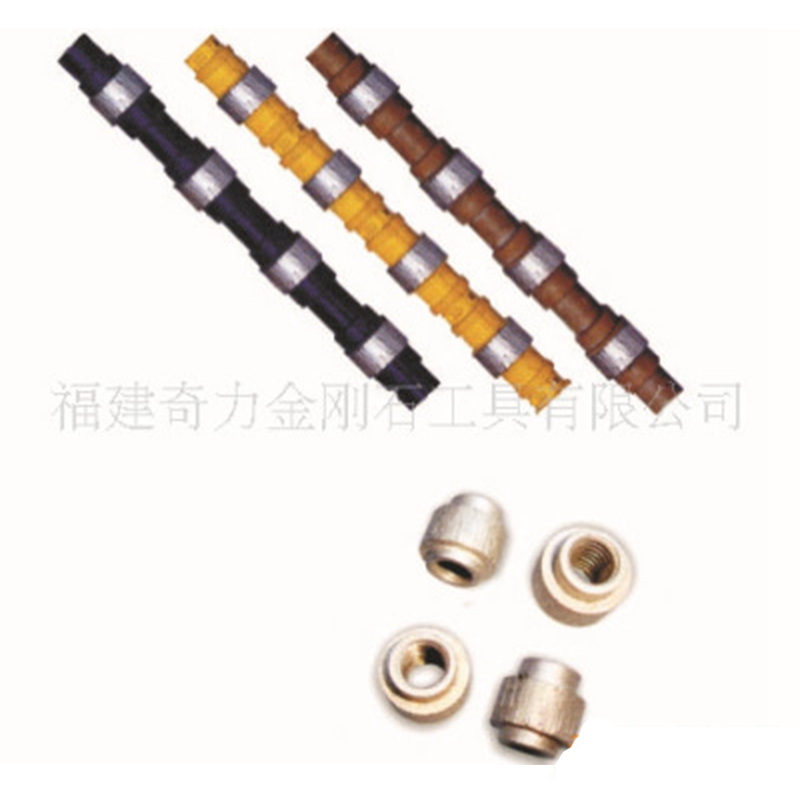

Technology parameter of string bead
Specification（mm） | Outer diameter（mm） | Height of work layer（mm） | Length（mm） | Manufacture tech |
Φ 11.5 | Φ 11.5 | 6.4 | 10.8 | Sintered |
Advantages
Wire saws for concrete cutting are widely used in cutting various buildings, bridges, pipelines and underwater buildings. Its advantages are:
1. It can cut large areas and irregular buildings.
2. It can realize cutting in any direction and partial cutting.
3. High efficiency, safety and no environmental pollution.
4. The cutting process can be controlled remotely.
Construction points
(1) Fixed wire saw machine and guide wheel
Fix the main tripod and auxiliary tripod of the wire saw with M16 chemical anchors. The installation of the guide wheel must be stable, and the edge of the wheel must be aligned with the center line of the rope hole to ensure the effective cutting speed of the cutting surface. Installation accuracy requirements.
(2) Installation rope
According to the determined cutting form, wind the diamond rope on the driving wheel and auxiliary wheel in a certain order. Note that the direction of the rope should be the same as the driving direction of the driving wheel.
(3) The connection of related operating systems and safety protection technical measures
According to the site conditions, the connection of water, electricity, mechanical equipment and other related pipelines should be correctly standardized and relatively centralized, and the wiring and placement shall strictly follow the safety operation regulations to prevent the disorderly placement of machines, people, auxiliary equipment, and materials. , Causing hidden dangers of accidents. During the rope cutting process, a safety barrier must be used in front of the direction of rope movement, and safety signs should be set up in a certain area to remind pedestrians not to enter the construction work area.
(4) Cutting
Start the electric motor, adjust the lifting tension of the driving wheel through the control panel to ensure that the diamond rope is properly tightened and supply circulating cooling water, and then start another electric motor to drive the driving wheel to drive the diamond rope to rotate and cut. During the cutting process, the stability of the machine base must be closely observed, and the deviation of the guide wheel must be adjusted at any time to ensure that the cutting rope is in the same plane.
(5) Selection of cutting parameters
During the cutting process, adjust the cutting parameters by operating the control panel to ensure that the linear speed of the diamond rope is about 20m/s. On the other hand, ensure sufficient flushing fluid during the cutting process to ensure cooling of the diamond rope and grinding it down. Take away the crumbs. The cutting operation achieves stable speed, stable parameters and stable equipment.
(6) Problems that should be paid attention to during the cutting process
In case of rope jamming, rope breaking, etc., corresponding measures must be taken to solve it. The safety protection measures must be strict and rigorous, otherwise the diamond beads on the broken diamond rope will fly out like bullets and injure people. Therefore, in addition to taking necessary protective measures at the scene, all unrelated personnel are not allowed to observe and observe.
