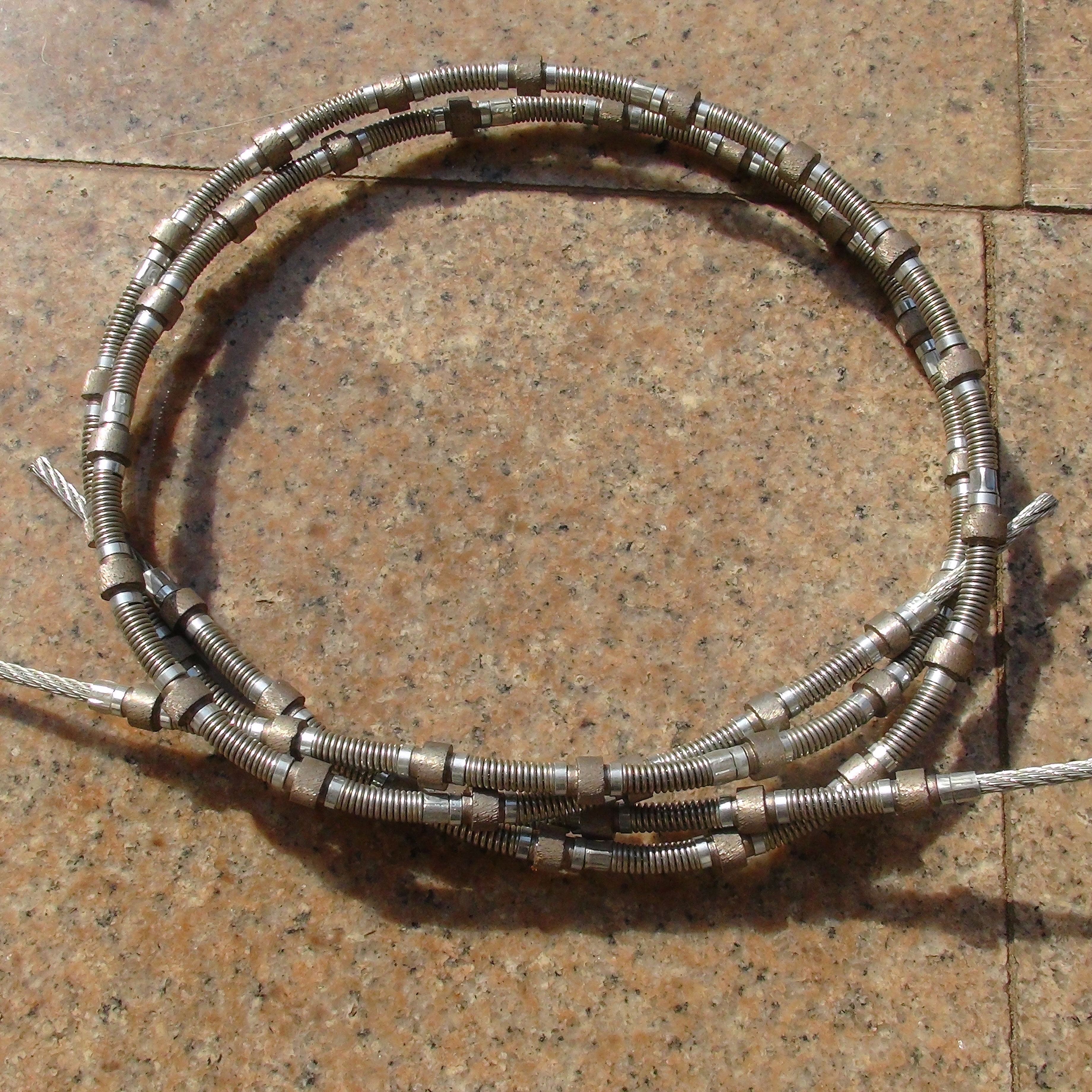

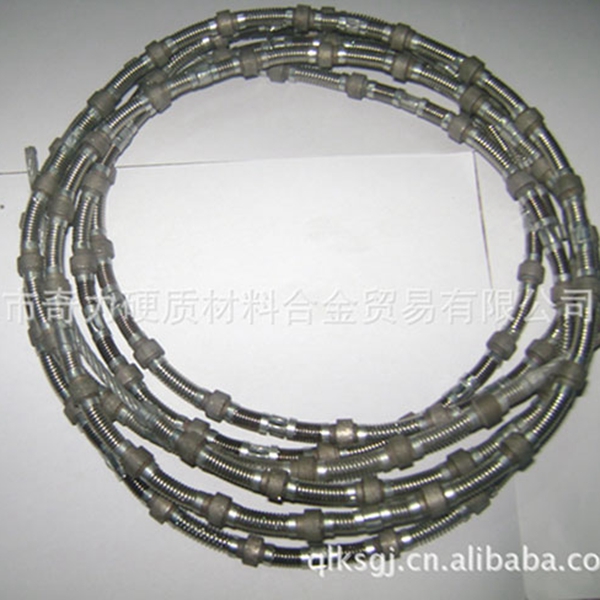

The emergence of Spring Diamond Rope Saw mining technology in stone mines is undoubtedly a revolution in mining. The method has high mining efficiency and is safe and environmentally friendly during operation. The yield rate of stone mining is high, the blocks are regular, there is no internal damage, large-size materials can be mined, and the comprehensive cost of mining is low.
Product Description
The emergence of Spring Diamond Rope Saw mining technology in stone mines is undoubtedly a revolution in mining. The method has high mining efficiency and is safe and environmentally friendly during operation. The yield rate of stone mining is high, the blocks are regular, there is no internal damage, large-size materials can be mined, and the comprehensive cost of mining is low.
Product parameter
Specification (mm) | Fixed way | Number of teeth | Cutting object | Efficiency (m2/h) | Life (m2/m) | Linear speed (m/s) |
Φ11.5 | Rubber | 40 | low rigidity granite | 4-6 | 15-25 | 25-30 |
Medium rigidity granite | 2-5 | 8-15 | 22-26 | |||
Hard granite | 1-2.5 | 4-9 | 18-23 | |||
Φ11.5 | Spring | 28/37 | low rigidity marble | 9-12 | 25-45 | 30-35 |
Medium rigidity marble | 7-10 | 15-25 | 28-32 | |||
Hard marble | 4-8 | 10-20 | 26-30 |
Product information
Origin: Jinjiang;
Whether to import: no
Brand: Qili Metal Products
Model: QL-d1
Custom processing: Yes
Applicable industry: Stone processing
Binding agent: Metal alloy
Production Process : sintering
Specification: 11.6
Our Advantages
1. The specifications can be adjusted according to customer needs;
2. According to the different stone types, we provide different carcass hardness beads;
3. According to different stone types, different carcass length designs are provided;
4. Our self-developed special rubber formula and vulcanization process can be applied to work requirements in various harsh environments;
5. Extensive production experience: We are specialized in diamond wire saw with an experience of 26 years;
6. Complete production facilities. Our technicians will do regular scheduled maintenance on these machines to guarantee them work well;
7. Strict Physical/Chemical testing procedures: Meeting the requirements of the product design and process, providing reliable testing data.
FAQ
1. Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.
2. Q:How can i trust your company?
A:With 26-years-professional design, we can provide you suitable suggestion and lowest price. Assessed by third party, national patents and CE, ISO for all equipment.
3.What type of your product?
We are one of the most professional and biggest manufacturer of diamond wire saw, diamond wire saw machine in China. Our main product is diamond wire saw, down the hole drilling machine, horizontal core drill and so on.
